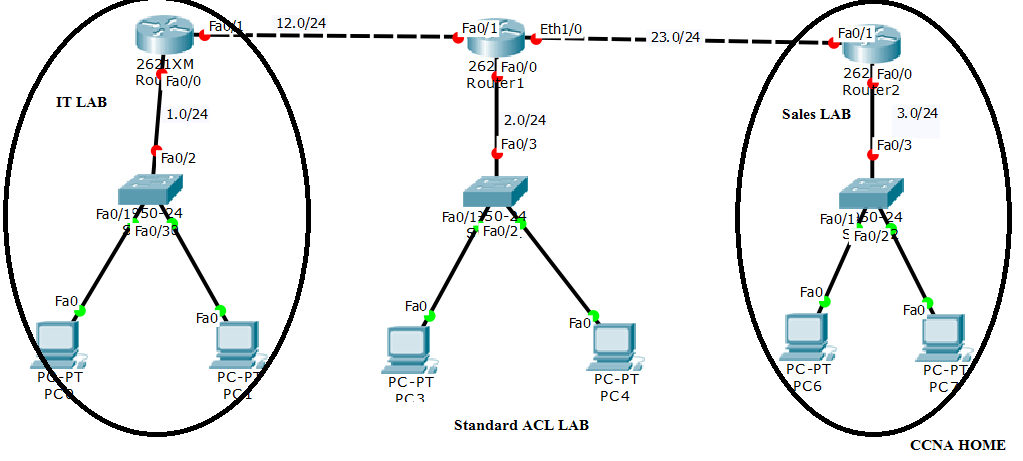

Task 1 :- Create Topolgy As given in pic.
Task 2 :- Configure IP address as per given pic.
Task 3 :- Configure Routing protocol ( RIP).
Task 4 :- Make sure R1 Pc is communicated with R3 pc.
Task 5 :- block all trafic IT Department  to Sales Department.

--------------------------------------------------------------------------------------
 Task 1 :- Create Topolgy As given in pic.



------------------------------------------------------------------------------------
 Task 2 :- Configure IP address as per given pic.

 R1

R1>
R1>en
R1#
R1#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
R1(config)#
R1(config)#interface fastEthernet 0/1
R1(config-if)#
R1(config-if)#ip address 192.168.12.1 255.255.255.0
R1(config-if)#
R1(config-if)#no shutdown
R1(config-if)#exit
R1(config)#
R1(config)#interface fastEthernet 0/0
R1(config-if)#
R1(config-if)#ip address 192.168.1.1 255.255.255.0
R1(config-if)#
R1(config-if)#no shutdown
R1(config-if)#exit
R1(config)#exit
R1#


R2

R2>en
R2#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
R2(config)#
R2(config)#interface fastEthernet 0/0
R2(config-if)#
R2(config-if)#ip address 192.168.2.1 255.255.255.0
R2(config-if)#
R2(config-if)#no shutdown

R2(config-if)#
R2(config)#interface fastEthernet 0/1
R2(config-if)#
R2(config-if)#ip address 192.168.12.2 255.255.255.0
R2(config-if)#
R2(config-if)#no shutdown
R2(config)#
R2(config)#interface ethernet 1/0
R2(config-if)#
R2(config-if)#ip address 192.168.23.1 255.255.255.0
R2(config-if)#
R2(config-if)#no shutdown

R3

R3>en
R3#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
R3(config)#
R3(config)#interface fastEthernet 0/1
R3(config-if)#
R3(config-if)#ip address 192.168.23.2 255.255.255.0
R3(config-if)#
R3(config-if)#no shutdown

R3(config)#interface fastEthernet 0/0
R3(config-if)#
R3(config-if)#ip address 192.168.3.1 255.255.255.0
R3(config-if)#
R3(config-if)#no shutdown



------------------------------------------------------------------------------------

 Task 3 :- Configure Routing protocol ( RIP).

R1

R1#
R1#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
R1(config)#
R1(config)#R1 rip
R1(config-R1)#
R1(config-R1)#network 192.168.12.0
R1(config-R1)#network 192.168.1.0
R1(config-R1)#
R1(config-R1)#no auto-summary
R1(config-R1)#
R1(config-R1)#version 2
R1(config-R1)#


R2


R2(config)#
R2(config)#R2 rip
R2(config-R2)#net
R2(config-R2)#network 192.168.12.0
R2(config-R2)#network 192.168.2.0
R2(config-R2)#network 192.168.23.0
R2(config-R2)#
R2(config-R2)#no auto-summary
R2(config-R2)#
R2(config-R2)#version 2
R2(config-R2)#exit
R2(config)#


R3

R3(config)#
R3(config)#R3 rip
R3(config-R3)#
R3(config-R3)#network 192.168.12.0
R3(config-R3)#network 192.168.2.0
R3(config-R3)#network 192.168.23.0
R3(config-R3)#
R3(config-R3)#no auto-summary
R3(config-R3)#
R3(config-R3)#version 2
R3(config-R3)#exit
R3(config)#


-------------------------------------------------------------------------------------

Task 4 :- Make sure R1 Pc is communicated with R3 pc.
 From PC1


 -----------------------------------------------------------------------------------

 Task 5 :- block all trafic IT Department  to Sales Department.

If we Want to block Sales It means IT is Source and Sales is Destination and Standard will apply on destination

let's see
R3(config)#access-list 10 deny 192.168.1.0 0.0.0.255
R3(config)#
R3(config)#access-list 10 permit any
R3(config)#
R3(config)#
R3(config)#interface fastEthernet 0/0
R3(config-if)#
R3(config-if)#ip access-group 10 in
R3(config-if)#
R3(config-if)#exit
R3(config)#
R3(config)#

------------------------------------------------------------------------------------
